Diamond Wire Drawing Die Blanks
Diamond wire drawing die blanks are polycrystalline diamond (PCD) products produced under ultra-high temperature and ultra-high pressure, diamond powder and a few of metal catalyst (Cobalt) sintered together with diamond-to-diamond bonding. They have not only high wear resistance, hardness and thermal conductivity but also high mechanical strength and tenacity. Our diamond die blanks are a unique product to draw a wide range of wire such as copper, aluminum, nickel, stainless steel and etc.

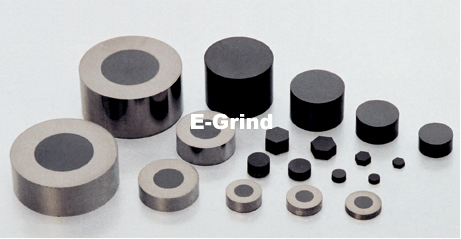

We have two series of diamond wire drawing die blanks: TDBY Series and CDB Series. They are available in 5 grades of grain size: 3 micron, 5 micron, 10 micron, 25 micron and 50 micron.
TDBY Series are tungsten carbide supported die blanks, which have a polycrystalline diamond core integrally bonded to a tungsten carbide support ring. This feature makes it well for drawing with high intensity.
CDB Series are self-supported die blanks, which include two types: CDBL (Hexagonal) and CDBY (Round). These blanks are suitable for all types of wire drawing applications especially where cost-cutting is required.
TDBY Series: Tungsten Carbide supported Die Blanks (Round)
| Product Code | ADDMA No. |
Dimensions (mm) |
Max. Die Size |
Avg. Grain Size (um) |
Diagram |
||||||
D |
d |
T |
3 |
5 |
10 |
25 |
50 |
||||
TDBY4015 |
D12 |
8.12 |
4.0 |
1.5 |
1.0 |
- |
○ |
● |
● |
○ |
|
TDBY4023 |
D15 |
8.12 |
4.0 |
2.3 |
1.8 |
- |
○ |
● |
● |
○ |
|
TDBY 4029 |
D18 |
8.12 |
4.0 |
2.9 |
2.3 |
- |
○ |
● |
● |
○ |
|
TDBY 7040 |
D21 |
13.65 |
7.0 |
4.0 |
3.5 |
- |
○ |
● |
● |
○ |
|
TDBY 7053 |
D24 |
13.65 |
7.0 |
5.3 |
4.6 |
- |
○ |
● |
● |
○ |
|
TDBY 9070 |
D24 |
16.00 |
9.0 |
7.0 |
5.0 |
- |
- |
○ |
○ |
○ |
|
TDBY 10080 |
D27 |
19.05 |
10.0 |
8.0 |
5.4 |
- |
- |
- |
○ |
○ |
|
TDBY 13075 |
D27 |
24.13 |
13.0 |
7.5 |
5.2 |
- |
- |
- |
○ |
○ |
|
TDBY 13086 |
D27 |
24.13 |
13.0 |
8.6 |
5.8 |
- |
- |
- |
● |
● |
|
TDBY 130116 |
D30 |
24.13 |
13.0 |
11.6 |
7.6 |
- |
- |
- |
● |
● |
|
TDBY 150120 |
D30 |
24.13 |
15.0 |
12.0 |
8.0 |
- |
- |
- |
○ |
○ |
|
ADDMA: American Diamond Die Manufactures' Association
D: Total Blank Diameter d: Diamond Diameter
T: Diamond Thickness
Note:
1. Die blanks must be cased below 650℃
2. Maximum recommended die size for soft nonferrous wire
Hard wire diameter normally should not exceed 65％ of this diameter
3. stock item order item
Typical order Code: TDBY4023 D15
Specification & Dimensions of Die Blanks
CDBL Series: Self-supported Die Blanks (Hexagonal)
| Product Code | ADDMA No. |
Dimensions (mm) |
Max. Die Size |
Avg. Grain Size (um) |
Diagram |
||||||
D |
d |
T |
3 |
5 |
10 |
25 |
50 |
||||
CDBL2510 |
D6 |
- |
2.5 |
1.0 |
0.4 |
○ |
● |
● |
● |
- |
|
CDBL3215 |
D12 |
- |
3.2 |
1.5 |
1.0 |
○ |
● |
● |
● |
- |
|
CDBL5225 |
D15 |
- |
5.2 |
2.5 |
1.5 |
○ |
● |
● |
○ |
- |
|
CDBL5235 |
D18 |
- |
5.2 |
3.5 |
2.0 |
○ |
● |
● |
○ |
- |
|
CDBY Series: Self-supported Die Blanks (Round)
| Product Code | ADDMA No. |
Dimensions (mm) |
Max. Die Size |
Avg. Grain Size (um) |
Diagram |
||||||
D |
d |
T |
3 |
5 |
10 |
25 |
50 |
||||
CDBY2510 |
D6 |
- |
2.5 |
1.0 |
0.4 |
○ |
● |
● |
○ |
- |
|
CDBY 3215 |
D12 |
- |
3.2 |
1.5 |
1.0 |
○ |
● |
● |
○ |
- |
|
CDBY 5225 |
D15 |
- |
5.2 |
2.5 |
1.5 |
○ |
● |
● |
○ |
- |
|
CDBY 5235 |
D18 |
- |
5.2 |
3.5 |
2.0 |
○ |
● |
● |
○ |
- |
|
CDBY 8040 |
D21 |
- |
8.0 |
4.0 |
3.0 |
○ |
● |
● |
○ |
- |
|
CDBY 9853 |
D24 |
- |
9.8 |
5.3 |
4.0 |
○ |
● |
● |
○ |
- |
|
CDBY 13085 |
D27 |
- |
13.0 |
8.5 |
5.0 |
- |
- |
○ |
● |
○ |
|
CDBY160120 |
D30 |
- |
16.0 |
12.0 |
7.0 |
- |
- |
○ |
● |
○ |
|
